ReasoningAgent Update - Beam Search, MCTS, and LATS for LLM Reasoning

Authors:

BabyCNM

AG2 Contributor

Hrushikesh Dokala

CS Undergraduate Based in India

Chi Wang

Founder of AutoGen (now AG2) & FLAML

Qingyun Wu

Co-Founder of AutoGen/AG2 & FLAML, Assistant Professor at Penn State University

Key Updates in this Release:

1. Configuration Changes

   • All reasoning parameters are now configured through a single reason_config dictionary
   • Breaking Change: Parameters like max_depth, beam_size, and answer_approach have moved from constructor arguments into reason_config

2. New Search Strategies

   • Added Monte Carlo Tree Search (MCTS) as an alternative to Beam Search
   • Introduced Language Agent Tree Search (LATS) - an enhancement to MCTS that incorporates reflection prior to the next round of simulation.

3. Enhanced Features

   • New forest_size parameter enables maintaining multiple independent reasoning trees
   • Support for ground truth answers in prompts to generate training data for LLM fine-tuning

Introduction

In our previous post, we introduced the ReasoningAgent, which utilized Beam Search for systematic reasoning. Today, we include MCTS (Monte Carlo Tree Search) and Language Agent Tree Search (LATS) as alternative search strategies, which present advantages in different scenarios.

Our previous ReasoningAgent draws inspiration from OpenAI’s 2023 paper, Let’s Verify Step by Step, as well as the 2024 O1 feature. The landscape of contemporary research is rich, with notable works such as DeepSeek-R1, Macro-O1, and OpenR.

Quick Start Guide

Let’s start with a simple example using MCTS:

import os
from autogen import UserProxyAgent, ReasoningAgent, LLMConfig

# Configure the model
llm_config = LLMConfig(api_type="openai", model="gpt-4o-mini", api_key=os.environ.get("OPENAI_API_KEY"))

# Create a reasoning agent with MCTS
with llm_config:
    mcts_agent = ReasoningAgent(
        name="mcts_agent",
        reason_config={
            "method": "mcts",  # Use MCTS instead of beam search
            "nsim": 5,  # Number of MCTS simulations
            "exploration_constant": 1.41  # UCT exploration parameter
        }
    )

# Create a user proxy agent
user_proxy = UserProxyAgent(
    name="user_proxy",
    human_input_mode="NEVER",
    code_execution_config={"use_docker": False}
)

prompt = "What is the expected maximum dice value if you can roll a 6-sided dice three times?"
response = user_proxy.initiate_chat(mcts_agent, message=prompt)

3. Configuring a Separate Grader Model

In addition to the main reasoning model, you can now specify a different model for the grader by using the grader_llm_config parameter. This allows for more flexibility in evaluating the reasoning paths generated by the agent. If this parameter is not provided, the grader will use the same model as the reasoning agent. Here’s how you can set it up:

# Configure the model
llm_config = LLMConfig(api_type="openai", model="gpt-4o-mini", api_key=os.environ.get("OPENAI_API_KEY"))
llm_config_larger = LLMConfig(api_type="openai", model="gpt-4o", api_key=os.environ.get("OPENAI_API_KEY"))

# Create a reasoning agent with MCTS
with llm_config:
    mcts_agent = ReasoningAgent(
        name="mcts_agent",
        grader_llm_config=llm_config_larger,
        reason_config={
            "method": "mcts",
            "nsim": 5
        }
    )

Key Features in the New Version

1. Multiple Search Methods

ReasoningAgent now supports three search strategies:

As the previous blog, the default method is beam search.

# Beam Search (default)
with llm_config:
    beam_agent = ReasoningAgent(
        name="beam_agent",
        reason_config={
            "method": "beam_search",
            "beam_size": 3,
            "answer_approach": "pool"  # or "best"
        }
    )

MCTS is also included as a common approach.

# Monte Carlo Tree Search
with llm_config:
    mcts_agent = ReasoningAgent(
        name="mcts_agent",
        reason_config={
            "method": "mcts",
            "nsim": 5 # number of simulations
        }
    )

It is important to note that our reasoning agent operates based on “process” and lacks direct access to the environment. In contrast, the LATS approach relies on feedback from the environment. To address this, we utilize our existing grader agent to generate pseudo-rewards and provide feedback. The major difference between our LATS implementation and our MCTS implementation is that the LATS approach incorporate the reflection into prompt context before next round of simulation. You can define the agent using the LATS approach as follows.

# Language Agent Tree Search
with llm_config:
    lats_agent = ReasoningAgent(
        name="lats_agent",
        reason_config={
            "method": "lats",
            "nsim": 5
        }
    )

2. Incorporating Ground Truth for Enhanced Training Data Synthesis

You can now include ground truth in your prompts to achieve more precise evaluations (grading). This allows you to leverage the reasoning agent to generate diverse thinking trajectories, further finetuning the base LLM.

prompt = """Solve this calculus problem: ∫x²dx

GROUND_TRUTH:
The integral of x² is (x³/3) + C
Steps:
1. Use power rule: increase power by 1
2. Divide by new power
3. Add constant of integration
"""

response = user_proxy.initiate_chat(mcts_agent, message=prompt)

# After running queries...
sft_data = mcts_agent.extract_sft_dataset()
rlhf_data = mcts_agent.extract_rlhf_preference_dataset()

3. Forest of Trees

Enable ensemble reasoning with multiple independent trees:

with llm_config:
    forest_agent = ReasoningAgent(
        name="forest_agent",
        reason_config={
            "method": "mcts",
            "forest_size": 5  # Run 5 independent trees
        }
    )

When to Use Each Method

Use Beam Search when:

• You want a deterministic search process
• You can reliably evaluate intermediate steps
• You need fast, memory-efficient search
• The solution space is relatively small and structured
• Early decisions strongly influence final outcomes

Use MCTS when:

• You need stochastic exploration of solution paths
• Final outcome evaluation is more reliable than intermediate steps
• The solution space is large or complex
• You want to balance exploration vs exploitation
• You have computational budget for multiple simulations

Use LATS when:

• Provides immediate reflection feedback before the next simulation
• Helps identify poor reasoning paths early for future improvement
• Especially useful for complex multi-step reasoning

Advanced Features

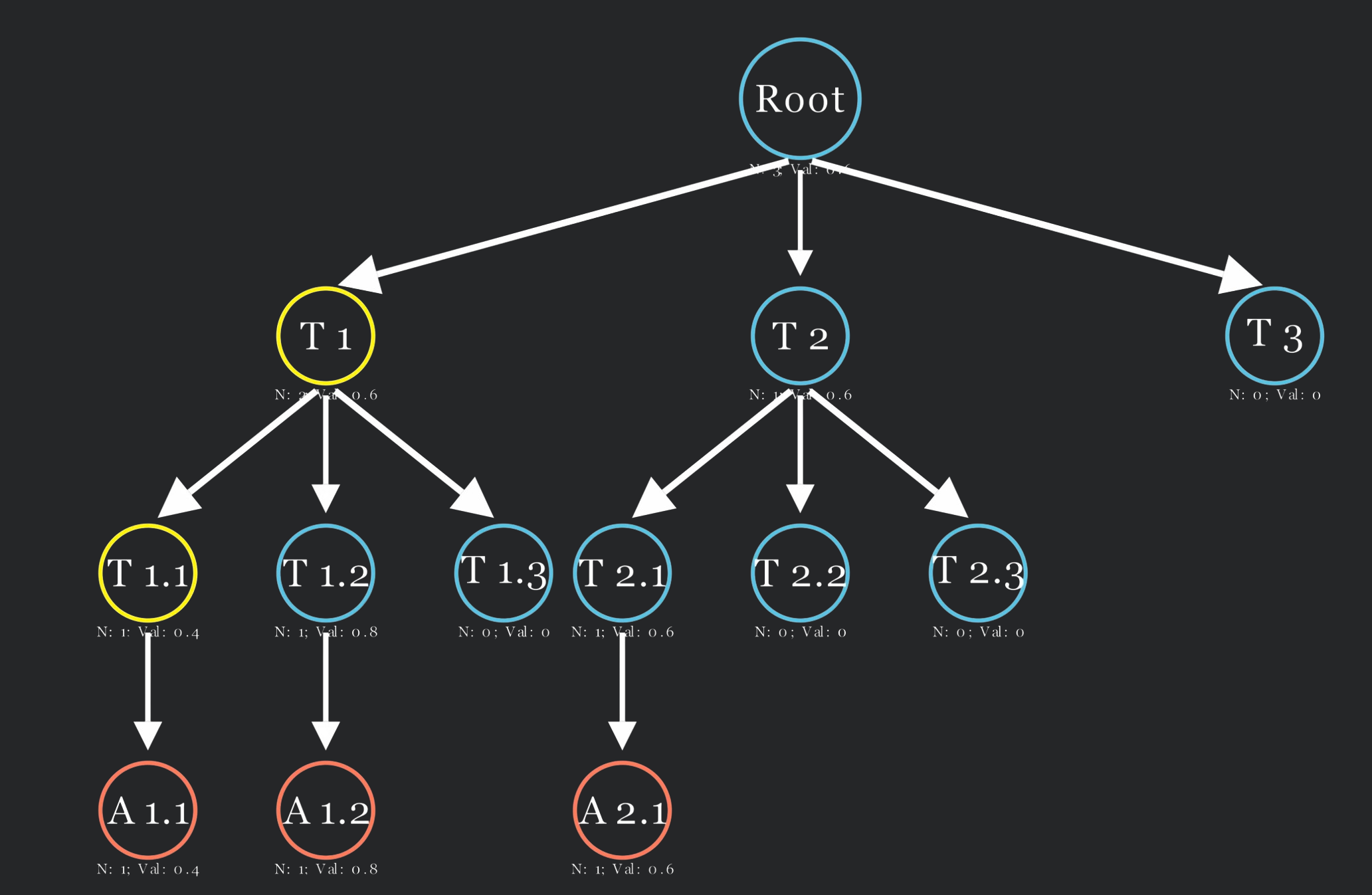

1. Visualization

Visualize the reasoning tree using graphviz:

# After running queries...
mcts_agent.visualize_tree()

2. Custom Evaluation

Modify the rating scale and evaluation criteria:

with llm_config:
    custom_agent = ReasoningAgent(
        name="custom_agent",
        reason_config={
            "rating_scale": 100,  # Use 1-100 scale instead of default 1-10 for grading
        }
    )

3. Save and Load Trees

Save reasoning trees for later analysis:

import json

# Save tree
data = mcts_agent._root.to_dict()
with open("reasoning_tree.json", "w") as f:
    json.dump(data, f)

# Load tree
from autogen.agents.experimental import ThinkNode
loaded_tree = ThinkNode.from_dict(json.load(open("reasoning_tree.json")))

Performance Comparison

Variables

• d: Maximum depth of the reasoning tree
• b: Beam size (number of parallel paths maintained)
• w: Branching factor (number of child nodes per parent)
• n: Number of MCTS simulations

Time Complexity

Each algorithm has different computational costs:

• Beam Search: O(d × b × (w + 1))
  • At each depth level d, evaluates w options for each of b beams
  • Plus 1 for generating the options
• MCTS and LATS: O(n × d)
  • Each simulation traverses down to depth d
  • Performs n total simulations

Memory Usage

Storage requirements vary by approach:

• Beam Search: O(b × d)
  • Fixed memory proportional to beam size and depth
  • Only stores active beams
• MCTS and LATS: O(w^d)
  • Worst case stores complete tree
  • In practice much smaller due to selective expansion

Conclusion

The new ReasoningAgent offers a flexible toolkit for systematic reasoning with LLMs. Choose between Beam Search, MCTS, and LATS based on your specific needs regarding:

• Evaluation cost and availability
• Time and resource constraints
• Desired exploration vs exploitation balance
• Training data generation requirements

Next Steps

• Async Client Call: parallelize LLM calling to speed up searching
• Swarm Agent implementation
• Efficient Mode: merging thinker and grader
• Batch Norm: normalizing scores for MCTS

For Further Reading

• Original ReasoningAgent with Beam Search
• Documentation about ReasoningAgent
• MCTS in Wikipedia
• Example Notebook

Join our Discord server to discuss your experiences with these approaches and suggest improvements.
