OptiGuide with Nested Chats in AG2

This is a nested chat re-implementation of OptiGuide, which is an LLM-based supply chain optimization framework. In addition to AG2, this notebook also requires eventlet and Gurobipy. The eventlet package is used in this notebook to constrain code execution with a timeout, and the gurobipy package is a mathematical optimization software library for solving mixed-integer linear and quadratic optimization problems.

Some extra dependencies are needed for this notebook, which can be installed via pip:

pip install ag2[openai] eventlet gurobipy

For more information, please refer to the installation guide.

import re
from typing import Union

# import auxiliary packages
import requests  # for loading the example source code
from eventlet.timeout import Timeout

# test Gurobi installation
from gurobipy import GRB
from termcolor import colored

import autogen
from autogen.code_utils import extract_code

llm_config = autogen.LLMConfig.from_json(path="OAI_CONFIG_LIST").where(
    model=["gpt-4", "gpt4", "gpt-3.5-turbogpt-4-32k", "gpt-4-32k-0314", "gpt-4-32k-v0314"]
)

Learn more about configuring LLMs for agents here.

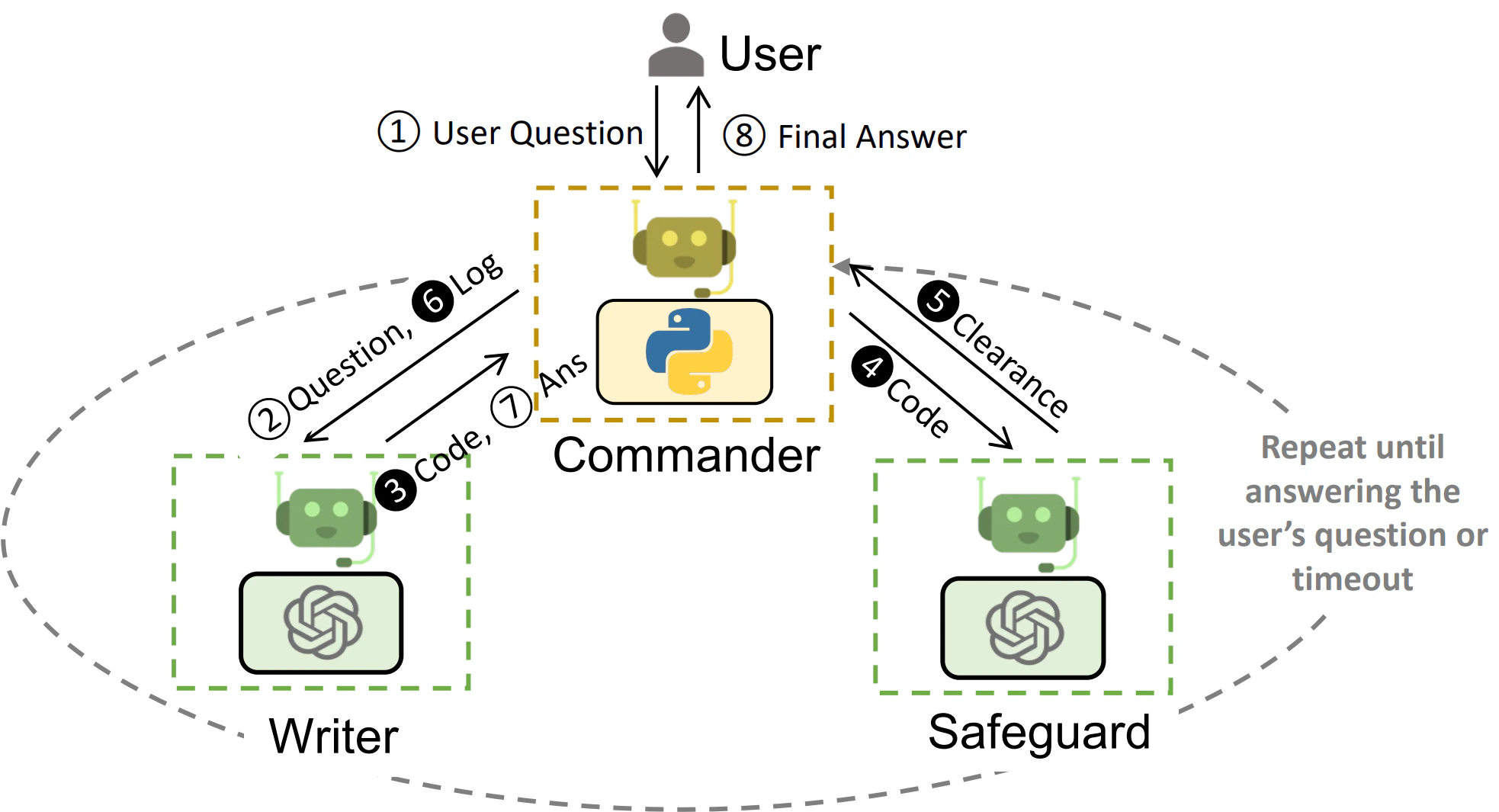

Intended agent orchestration in OptiGuide.

Step 0. Prepare Helper Functions

The code cell below includes several helper functions to be used by agents. The helper functions are adopted directly from OptiGuide.

Utility Functions

Several utility functions (replace, insert_code, run_with_exec) are defined to manipulate and execute the source code dynamically:

replace(src_code, old_code, new_code) -> str:
Replaces a specified block of code within the source code with new code. This is essential for updating the code dynamically based on chatbot and user interactions.
insert_code(src_code, new_lines) -> str:
Determines where to insert new lines of code based on specific markers in the source code. It’s used to seamlessly integrate generated code snippets.
run_with_exec(src_code) -> Union[str, Exception]:
Executes the modified source code within a controlled environment, capturing and returning the output or any errors that occur. This function is crucial for testing the feasibility and correctness of the generated code solutions.

Functions External Code Retrieval

The cell also includes logic to retrieve example source code from a remote repository using the requests library. This example code serves as a base for the chatbot to work with, allowing users to see real-life applications of the concepts discussed. The retrieved code is then displayed, showing both the beginning and the end of the source code to give a glimpse of its structure and content.

def replace(src_code: str, old_code: str, new_code: str) -> str:
    """Inserts new code into the source code by replacing a specified old
    code block.

    Args:
        src_code (str): The source code to modify.
        old_code (str): The code block to be replaced.
        new_code (str): The new code block to insert.

    Returns:
        str: The modified source code with the new code inserted.

    Raises:
        None

    Example:
        src_code = 'def hello_world():\n    print("Hello, world!")\n\n# Some
        other code here'
        old_code = 'print("Hello, world!")'
        new_code = 'print("Bonjour, monde!")\nprint("Hola, mundo!")'
        modified_code = _replace(src_code, old_code, new_code)
        print(modified_code)
        # Output:
        # def hello_world():
        #     print("Bonjour, monde!")
        #     print("Hola, mundo!")
        # Some other code here
    """
    pattern = rf"( *){old_code}"
    head_spaces = re.search(pattern, src_code, flags=re.DOTALL).group(1)
    new_code = "\n".join([head_spaces + line for line in new_code.split("\n")])
    rst = re.sub(pattern, new_code, src_code)
    return rst


def insert_code(src_code: str, new_lines: str) -> str:
    """Insert a code patch into the source code.

    Args:
        src_code (str): the full source code
        new_lines (str): The new code.

    Returns:
        str: the full source code after insertion (replacement).
    """
    if new_lines.find("addConstr") >= 0:
        return replace(src_code, CONSTRAINT_CODE_STR, new_lines)
    else:
        return replace(src_code, DATA_CODE_STR, new_lines)


def run_with_exec(src_code: str) -> Union[str, Exception]:
    """Run the code snippet with exec.

    Args:
        src_code (str): The source code to run.

    Returns:
        object: The result of the code snippet.
            If the code succeed, returns the objective value (float or string).
            else, return the error (exception)
    """
    locals_dict = {}
    locals_dict.update(globals())
    locals_dict.update(locals())

    timeout = Timeout(
        60,
        TimeoutError("This is a timeout exception, in case GPT's code falls into infinite loop."),
    )
    try:
        exec(src_code, locals_dict, locals_dict)
    except Exception as e:
        return e
    finally:
        timeout.cancel()

    try:
        status = locals_dict["m"].Status
        if status != GRB.OPTIMAL:
            if status == GRB.UNBOUNDED:
                ans = "unbounded"
            elif status == GRB.INF_OR_UNBD:
                ans = "inf_or_unbound"
            elif status == GRB.INFEASIBLE:
                ans = "infeasible"
                m = locals_dict["m"]
                m.computeIIS()
                constrs = [c.ConstrName for c in m.getConstrs() if c.IISConstr]
                ans += "\nConflicting Constraints:\n" + str(constrs)
            else:
                ans = "Model Status:" + str(status)
        else:
            ans = "Optimization problem solved. The objective value is: " + str(locals_dict["m"].objVal)
    except Exception as e:
        return e

    return ans

Step 1. Agent Construction

This cell introduces the Writer and OptiGuide agent classes and their instances to manage the interaction between the user, the chatbot, and the optimization solver. This streamlines the process of generating, evaluating, and integrating code solutions for supply chain optimization problems.

Classes Defined

OptiGuide: Inherits from autogen.AssistantAgent and serves as the main class for handling the supply chain optimization logic. It maintains state information like the source code, debugging attempts left, success status, and user chat history. Key methods include set_success and update_debug_times, which are used to update the agent’s state based on the outcomes of interactions.
Writer: Also inherits from autogen.AssistantAgent, this class is tailored to manage the generation and explanation of Python code solutions. It keeps track of the source code and example Q&A to assist in generating responses to user queries.

Agent Instances

writer, safeguard, and optiguide_commander: Instances of the classes defined above, each configured with specific roles in the code generation and evaluation process. These agents work together to ensure that the user’s questions are answered with safe, optimized, and understandable Python code solutions.
user: An instance of autogen.UserProxyAgent, representing the end-user interacting with the notebook. It’s configured to simulate user inputs and responses, facilitating an interactive and engaging learning experience.

Agent System Messages

Each agent is associated with a corresponding system message. Those system messages are adopted directly from OptiGuide.

# %% System Messages
WRITER_SYSTEM_MSG = """You are a chatbot to:
(1) write Python code to answer users questions for supply chain-related coding
project;
(2) explain solutions from a Gurobi/Python solver.

--- SOURCE CODE ---
{source_code}

--- DOC STR ---
{doc_str}
---

Here are some example questions and their answers and codes:
--- EXAMPLES ---
{example_qa}
---

The execution result of the original source code is below.
--- Original Result ---
{execution_result}

Note that your written code will be added to the lines with substring:
"# OPTIGUIDE *** CODE GOES HERE"
So, you don't need to write other code, such as m.optimize() or m.update().
You just need to write code snippet in ```python ...``` block.
"""

SAFEGUARD_SYSTEM_MSG = """
Given the source code:
{source_code}

Is the source code safe (not malicious code to break security
and privacy) to run?
Answer only one word.
If not safe, answer `DANGER`; else, answer `SAFE`.
"""

# %% Constant strings to match code lines in the source code.
DATA_CODE_STR = "# OPTIGUIDE DATA CODE GOES HERE"
CONSTRAINT_CODE_STR = "# OPTIGUIDE CONSTRAINT CODE GOES HERE"

# In-context learning examples.
example_qa = """
----------
Question: Why is it not recommended to use just one supplier for roastery 2?
Answer Code:
```python
z = m.addVars(suppliers, vtype=GRB.BINARY, name="z")
m.addConstr(sum(z[s] for s in suppliers) <= 1, "_")
for s in suppliers:
    m.addConstr(x[s,'roastery2'] <= capacity_in_supplier[s] * z[s], "_")
```

----------
Question: What if there's a 13% jump in the demand for light coffee at cafe1?
Answer Code:
```python
light_coffee_needed_for_cafe["cafe1"] = light_coffee_needed_for_cafe["cafe1"] * (1 + 13/100)
```

"""

CODE_PROMPT = """
Answer Code:
"""

DEBUG_PROMPT = """

While running the code you suggested, I encountered the {error_type}:
--- ERROR MESSAGE ---
{error_message}

Please try to resolve this bug, and rewrite the code snippet.
--- NEW CODE ---
"""

SAFEGUARD_PROMPT = """
--- Code ---
{code}

--- One-Word Answer: SAFE or DANGER ---
"""

INTERPRETER_PROMPT = """Here are the execution results: {execution_rst}

Can you organize these information to a human readable answer?
Remember to compare the new results to the original results you obtained in the
beginning.

--- HUMAN READABLE ANSWER ---
"""

# Get the source code of the coffee example from OptiGuide's official repo
code_url = "https://raw.githubusercontent.com/microsoft/OptiGuide/main/benchmark/application/coffee.py"
response = requests.get(code_url)
# Check if the request was successful
if response.status_code == 200:
    # Get the text content from the response
    code = response.text
else:
    raise RuntimeError("Failed to retrieve the file.")
# code = open(code_url, "r").read() # for local files


# show the first head and tail of the source code
print("\n".join(code.split("\n")[:10]))
print(".\n" * 3)
print("\n".join(code.split("\n")[-10:]))

writer_system_msg = WRITER_SYSTEM_MSG.format(
    source_code=code,
    doc_str="",
    example_qa=example_qa,
    execution_result="",
)
safeguard_system_msg = SAFEGUARD_SYSTEM_MSG.format(source_code=code)


class OptiGuide(autogen.AssistantAgent):
    source_code: str = code
    debug_times: int = 3
    debug_times_left: int = 3
    example_qa: str = ""
    success: bool = False
    user_chat_history: str = ""


class Writer(autogen.AssistantAgent):
    source_code: str = code
    example_qa: str = ""
    user_chat_history: str = ""


writer = Writer("writer", llm_config=llm_config)
safeguard = autogen.AssistantAgent("safeguard", llm_config=llm_config)
optiguide_commander = OptiGuide("commander", llm_config=llm_config)

user = autogen.UserProxyAgent(
    "user", max_consecutive_auto_reply=0, human_input_mode="NEVER", code_execution_config=False
)

Step 2. Orchestrate Nested Chats

These three agent instances are orchestrated in the following way with the writer and safeguard nested into the commander agent as the inner monologue. This next cell defines critical functions that manage the interactions between the OptiGuide system, the user, and the internal logic for processing and responding to queries. Each function plays a specific role in guiding the conversation, handling code generation requests, ensuring code safety, and summarizing outcomes. This ensures that agents receive clear instructions, immediate feedback, and a secure environment for exploring supply chain optimization problems through code. Information about the sequence of chats can be specified in the chat_queue argument of the register_nested_chats function. The following fields are especially useful: - recipient (required) specifies the nested agent; - message specifies what message to send to the nested recipient agent. In a sequence of nested chats, if the message field is not specified, we will use the last message the registering agent received as the initial message in the first chat and will skip any subsequent chat in the queue that does not have the message field. You can either provide a string or define a callable that returns a string. - summary_method decides what to get out of the nested chat. You can either select from existing options including “last_msg” and “reflection_with_llm”, or or define your own way on what to get from the nested chat with a Callable. - max_turns determines how many turns of conversation to have between the concerned agent pairs.

def writer_init_message(recipient, messages, sender, config):
    if recipient.success:
        return None
    msg_content = messages[-1].get("content", "")
    # board = config
    # get execution result of the original source code
    sender_history = recipient.chat_messages[sender]
    user_chat_history = f"\nHere are the history of discussions:\n{sender_history}"

    # TODO: get the execution result of the original source code
    execution_result = msg_content if sender.name == "user" else ""

    writer_sys_msg = (
        WRITER_SYSTEM_MSG.format(
            source_code=recipient.source_code,
            doc_str="",
            example_qa=example_qa,
            execution_result=execution_result,
        )
        + user_chat_history
    )

    # safeguard.reset() #TODO: reset safeguard
    recipient.debug_times_left = recipient.debug_times
    recipient.success = False
    return writer_sys_msg + "\n" + CODE_PROMPT


def writer_success_summary(recipient, sender):
    if sender.success:
        return sender.last_message(recipient)["content"].replace("TERMINATE", "")
    else:
        return "Sorry. I cannot answer your question."


def safeguard_init_message(recipient, messages, sender, config):
    if recipient.success:
        return None
    last_msg_content = messages[-1].get("content", "")
    _, code = extract_code(last_msg_content)[0]
    if _ != "unknown":
        return SAFEGUARD_SYSTEM_MSG.format(source_code=code) + sender.user_chat_history
    else:
        return
        # return SAFEGUARD_SYSTEM_MSG.format(source_code=recipient.source_code)


def safeguard_summary(recipient, sender):
    safe_msg = sender.last_message(recipient)["content"].replace("TERMINATE", "")

    if safe_msg.find("DANGER") < 0:
        # Step 4 and 5: Run the code and obtain the results
        src_code = insert_code(sender.source_code, code)
        execution_rst = run_with_exec(src_code)
        print(colored(str(execution_rst), "yellow"))
        if type(execution_rst) in [str, int, float]:
            # we successfully run the code and get the result
            sender.success = True
            # Step 6: request to interpret results
            return INTERPRETER_PROMPT.format(execution_rst=execution_rst)
    else:
        # DANGER: If not safe, try to debug. Redo coding
        execution_rst = """
        Sorry, this new code is not safe to run. I would not allow you to execute it.
        Please try to find a new way (coding) to answer the question."""
        if sender.debug_times_left > 0:
            # Try to debug and write code again (back to step 2)
            sender.debug_times_left -= 1
            return DEBUG_PROMPT.format(error_type=type(execution_rst), error_message=str(execution_rst))


writer_chat_queue = [{"recipient": writer, "message": writer_init_message, "summary_method": writer_success_summary}]
safeguard_chat_queue = [
    {"recipient": safeguard, "message": safeguard_init_message, "max_turns": 1, "summary_method": safeguard_summary}
]
# safeguard is triggered only when receiving a message from the writer
optiguide_commander.register_nested_chats(safeguard_chat_queue, trigger="writer")
# writer is triggered only when receiving a message from the user
optiguide_commander.register_nested_chats(writer_chat_queue, trigger="user")

Let the agents talk

chat_res = user.initiate_chat(
    optiguide_commander, message="What if we prohibit shipping from supplier 1 to roastery 2?"
)

Get Final Results from the Returned ChatResult Object

print(chat_res.summary)

Edit this page

Use Cases

​Step 0. Prepare Helper Functions

​Utility Functions

​Functions External Code Retrieval

​Step 1. Agent Construction

​Classes Defined

​Agent Instances

​Agent System Messages

​Step 2. Orchestrate Nested Chats

​Let the agents talk

​Get Final Results from the Returned ChatResult Object

Step 0. Prepare Helper Functions

Utility Functions

Functions External Code Retrieval

Step 1. Agent Construction

Classes Defined

Agent Instances

Agent System Messages

Step 2. Orchestrate Nested Chats

Let the agents talk

Get Final Results from the Returned ChatResult Object
