Google Vertex AI

This notebook demonstrates how to use AG2 with Gemini via Vertex AI, which enables enhanced authentication method that also supports enterprise requirements using service accounts or even a personal Google cloud account.

Requirements

Install AG2 with Gemini features:

pip install ag2[gemini]

If you have been using autogen or ag2, all you need to do is upgrade it using:

pip install -U autogen[gemini]

pip install -U ag2[gemini]

as autogen and ag2 are aliases for the same PyPI package.

Install other Dependencies of this Notebook

pip install chromadb markdownify pypdf

Google Cloud Account

To use VertexAI a Google Cloud account is needed. If you do not have one yet, just sign up for a free trial here. Login to your account at console.cloud.google.com In the next step we create a Google Cloud project, which is needed for VertexAI. The official guide for creating a project is available is here. We will name our project AG2-with-Gemini.

Enable Google Cloud APIs

If you wish to use Gemini with your personal account, then creating a Google Cloud account is enough. However, if a service account is needed, then a few extra steps are needed.

Enable API for Gemini

For enabling Gemini for Google Cloud search for “api” and select Enabled APIs & services.
Then click ENABLE APIS AND SERVICES.
Search for Gemini, and select Gemini for Google Cloud.
A direct link will look like this for our ag2-with-gemini project: https://console.cloud.google.com/apis/library/cloudaicompanion.googleapis.com?project=ag2-with-gemini&supportedpurview=project
Click ENABLE for Gemini for Google Cloud.

Enable API for Vertex AI

For enabling Vertex AI for Google Cloud search for “api” and select Enabled APIs & services.
Then click ENABLE APIS AND SERVICES.
Search for Vertex AI, and select Vertex AI API.
A direct link for our ag2-with-gemini will be: https://console.cloud.google.com/apis/library/aiplatform.googleapis.com?project=ag2-with-gemini
Click ENABLE Vertex AI API for Google Cloud.

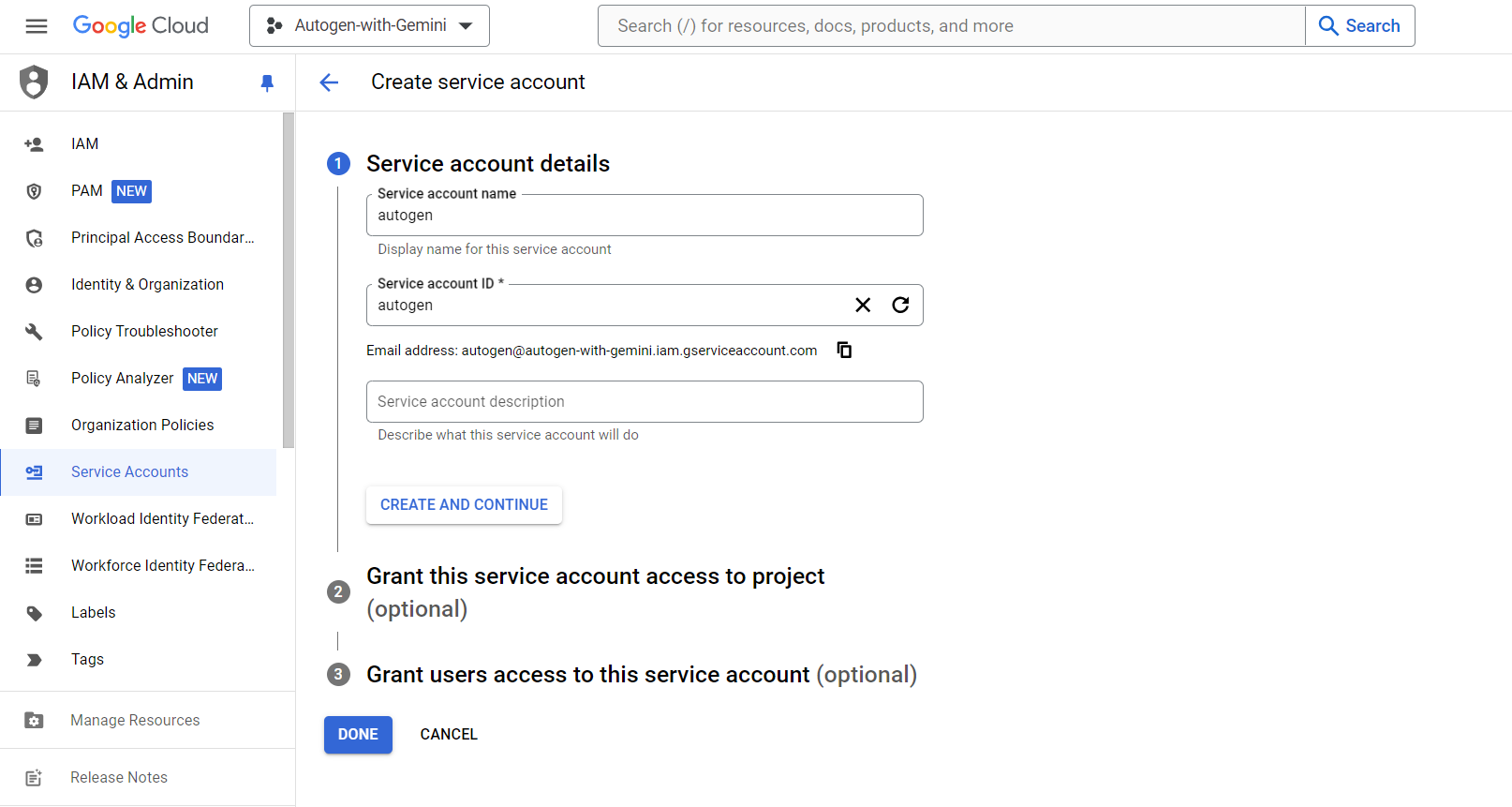

Create a Service Account

You can find an overview of service accounts can be found in the cloud console Detailed guide: https://cloud.google.com/iam/docs/service-accounts-create A service account can be created within the scope of a project, so a project needs to be selected. Screenshot

Next we assign the Vertex AI User for the service account. This can be done in the Google Cloud console in our ag2-with-gemini project.
Alternatively, we can also grant the Vertex AI User role by running a command using the gcloud CLI, for example in Cloud Shell:

gcloud projects add-iam-policy-binding ag2-with-gemini \
    --member=serviceAccount:ag2@ag2-with-gemini.iam.gserviceaccount.com --role roles/aiplatform.user

Under IAM & Admin > Service Account select the newly created service accounts, and click the option “Manage keys” among the items.
From the “ADD KEY” dropdown select “Create new key” and select the JSON format and click CREATE.
- The new key will be downloaded automatically.
You can then upload the service account key file to the from where you will be running AG2.
- Please consider restricting the permissions on the key file. For example, you could run chmod 600 ag2-with-gemini-service-account-key.json if your keyfile is called ag2-with-gemini-service-account-key.json.

Configure Authentication

Authentication happens using standard Google Cloud authentication methods,
which means that either an already active session can be reused, or by specifying the Google application credentials of a service account.

Additionally, AG2 also supports authentication using Credentials objects in Python with the google-auth library, which enables even more flexibility.
For example, we can even use impersonated credentials.

Use Service Account Keyfile

The Google Cloud service account can be specified by setting the GOOGLE_APPLICATION_CREDENTIALS environment variable to the path to the JSON key file of the service account.
We could even just directly set the environment variable, or we can add the "google_application_credentials" key with the respective value for our model in the OAI_CONFIG_LIST.

Use the Google Default Credentials

If you are using Cloud Shell or Cloud Shell editor in Google Cloud,
then you are already authenticated. If you have the Google Cloud SDK installed locally,
then you can login by running gcloud auth application-default login in the command line. Detailed instructions for installing the Google Cloud SDK can be found here.

Authentication with the Google Auth Library for Python

The google-auth library supports a wide range of authentication scenarios, and you can simply pass a previously created Credentials object to the llm_config.
The official documentation of the Python package provides a detailed overview of the supported methods and usage examples.
If you are already authenticated, like in Cloud Shell, or after running the gcloud auth application-default login command in a CLI, then the google.auth.default() Python method will automatically return your currently active credentials.

Example Config List

The config could look like the following (change project_id and google_application_credentials):

config_list = [
    {
        "model": "gemini-pro",
        "api_type": "google",
        "project_id": "ag2-with-gemini",
        "location": "us-west1"
    },
    {
        "model": "gemini-1.5-pro-001",
        "api_type": "google",
        "project_id": "ag2-with-gemini",
        "location": "us-west1"
    },
    {
        "model": "gemini-1.5-pro",
        "api_type": "google",
        "project_id": "ag2-with-gemini",
        "location": "us-west1",
        "google_application_credentials": "ag2-with-gemini-service-account-key.json"
    },
    {
        "model": "gemini-pro-vision",
        "api_type": "google",
        "project_id": "ag2-with-gemini",
        "location": "us-west1"
    }
]

Configure Safety Settings for VertexAI

Configuring safety settings for VertexAI is slightly different, as we have to use the speicialized safety setting object types instead of plain strings

from vertexai.generative_models import HarmBlockThreshold, HarmCategory

safety_settings = {
    HarmCategory.HARM_CATEGORY_HARASSMENT: HarmBlockThreshold.BLOCK_ONLY_HIGH,
    HarmCategory.HARM_CATEGORY_HATE_SPEECH: HarmBlockThreshold.BLOCK_ONLY_HIGH,
    HarmCategory.HARM_CATEGORY_SEXUALLY_EXPLICIT: HarmBlockThreshold.BLOCK_ONLY_HIGH,
    HarmCategory.HARM_CATEGORY_DANGEROUS_CONTENT: HarmBlockThreshold.BLOCK_ONLY_HIGH,
}

import autogen
from autogen import AssistantAgent, UserProxyAgent, LLMConfig
from autogen.agentchat.contrib.multimodal_conversable_agent import MultimodalConversableAgent
from autogen.code_utils import content_str

seed = 25  # for caching
llm_config_gemini = LLMConfig(path="OAI_CONFIG_LIST", seed=seed).where(model="gemini-1.5-pro")

llm_config_gemini_vision = autogen.LLMConfig(path="OAI_CONFIG_LIST").where(model="gemini-pro-vision")

for llm_config in [llm_config_gemini, llm_config_gemini_vision]:
    for config_list_item in llm_config.config_list:
        config_list_item.safety_settings = safety_settings

with llm_config_gemini:
    assistant = AssistantAgent(
        "assistant",
        max_consecutive_auto_reply=3
    )

user_proxy = UserProxyAgent(
    "user_proxy",
    code_execution_config={"work_dir": "coding", "use_docker": False},
    human_input_mode="NEVER",
    is_termination_msg=lambda x: content_str(x.get("content")).find("TERMINATE") >= 0,
)

result = user_proxy.initiate_chat(
    assistant,
    message="""
    Compute the integral of the function f(x)=x^2 on the interval 0 to 1 using a Python script,
    which returns the value of the definite integral""",
)

user_proxy (to assistant):

    Compute the integral of the function f(x)=x^2 on the interval 0 to 1 using a Python script,
    which returns the value of the definite integral

--------------------------------------------------------------------------------
assistant (to user_proxy):

Plan:
1. (code) Use Python's `scipy.integrate.quad` function to compute the integral.

'''python
# filename: integral.py
from scipy.integrate import quad

def f(x):
  return x**2

result, error = quad(f, 0, 1)

print(f"The definite integral of x^2 from 0 to 1 is: {result}")
'''

Let me know when you have executed this code.

--------------------------------------------------------------------------------

>>>>>>>> EXECUTING CODE BLOCK 0 (inferred language is python)...
user_proxy (to assistant):

exitcode: 0 (execution succeeded)
Code output:
The definite integral of x^2 from 0 to 1 is: 0.33333333333333337

--------------------------------------------------------------------------------
assistant (to user_proxy):

The script executed successfully and returned the definite integral's value as approximately 0.33333333333333337.

This aligns with the analytical solution. The indefinite integral of x^2 is (x^3)/3. Evaluating this from 0 to 1 gives us (1^3)/3 - (0^3)/3 = 1/3 = 0.33333...

Therefore, the script successfully computed the integral of x^2 from 0 to 1.

TERMINATE

--------------------------------------------------------------------------------

Example with Gemini Multimodal

Authentication is the same for vision models as for the text based Gemini models.
In this example an object of type Credentials will be supplied in order to authenticate.
Here, we will use the google application default credentials, so make sure to run the following commands if you are not yet authenticated:

export GOOGLE_APPLICATION_CREDENTIALS=ag2-with-gemini-service-account-key.json
gcloud auth application-default login
gcloud config set project ag2-with-gemini

The GOOGLE_APPLICATION_CREDENTIALS environment variable is a path to our service account JSON keyfile, as described in the Use Service Account Keyfile section above.
We also need to set the Google cloud project, which is ag2-with-gemini in this example.

Note, we could also run gcloud auth application-default login to use our personal Google account instead of a service account. In this case we need to run the following commands:

gcloud gcloud auth application-default login
gcloud config set project ag2-with-gemini

import google.auth

scopes = ["https://www.googleapis.com/auth/cloud-platform"]

credentials, project_id = google.auth.default(scopes)

llm_config_gemini_vision = LLMConfig(
    model="gemini-pro-vision",
    api_type="google",
    project_id=project_id,
    credentials=credentials,
    location="us-west1",
    safety_settings=safety_settings,
    seed=seed,
)

with llm_config_gemini_vision:
    image_agent = MultimodalConversableAgent(
        "Gemini Vision",
        max_consecutive_auto_reply=1,
    )

user_proxy = UserProxyAgent("user_proxy", human_input_mode="NEVER", max_consecutive_auto_reply=0)

user_proxy.initiate_chat(
    image_agent,
    message="""Describe what is in this image?
<img https://github.com/ag2ai/ag2/blob/main/website/docs/user-guide/models/assets/ag2-agentchat.png>.""",
)

user_proxy (to Gemini Vision):

Describe what is in this image?
<image>.

--------------------------------------------------------------------------------

>>>>>>>> USING AUTO REPLY...
Gemini Vision (to user_proxy):

 The image describes a conversational agent that is able to have a conversation with a human user. The agent can be customized to the user's preferences. The conversation can be in form of a joint chat or hierarchical chat.

--------------------------------------------------------------------------------

Use Gemini via the OpenAI Library in AG2

Using Gemini via the OpenAI library is also possible once you are already authenticated.
Be sure to install the openai package to do this.
Run gcloud auth application-default login to set up application default credentials locally for the example below.
Also set the Google cloud project on the CLI if you have not done so far:

gcloud config set project ag2-with-gemini

The prerequisites are essentially the same as in the example above.
You can read more on the topic in the official Google docs.
A list of currently supported models can also be found in the docs

Note, that you will need to refresh your token regularly, by default every 1 hour.

import google.auth

scopes = ["https://www.googleapis.com/auth/cloud-platform"]
creds, project = google.auth.default(scopes)
auth_req = google.auth.transport.requests.Request()
creds.refresh(auth_req)
location = "us-west1"
prompt_price_per_1k = (
    0.000125  # For more up-to-date prices see https://cloud.google.com/vertex-ai/generative-ai/pricing
)
completion_token_price_per_1k = (
    0.000375  # For more up-to-date prices see https://cloud.google.com/vertex-ai/generative-ai/pricing
)

llm_config_openai_gemini = LLMConfig(
    model="google/gemini-1.5-pro-001",
    api_type="openai",
    base_url=f"https://{location}-aiplatform.googleapis.com/v1beta1/projects/{project}/locations/{location}/endpoints/openapi",
    api_key=creds.token,
    price=[prompt_price_per_1k, completion_token_price_per_1k],
)

with llm_config_openai_gemini:
    assistant = AssistantAgent("assistant", max_consecutive_auto_reply=3)

user_proxy = UserProxyAgent(
    "user_proxy",
    code_execution_config={"work_dir": "coding", "use_docker": False},
    human_input_mode="NEVER",
    is_termination_msg=lambda x: content_str(x.get("content")).find("TERMINATE") >= 0,
)

result = user_proxy.initiate_chat(
    assistant,
    message="""
    Compute the integral of the function f(x)=x^3 on the interval 0 to 10 using a Python script,
    which returns the value of the definite integral.""",
)

user_proxy (to assistant):

    Compute the integral of the function f(x)=x^3 on the interval 0 to 10 using a Python script,
    which returns the value of the definite integral.

--------------------------------------------------------------------------------
assistant (to user_proxy):

'''python
# filename: integral.py
def integrate_x_cubed(a, b):
  """
  This function calculates the definite integral of x^3 from a to b.

  Args:
      a: The lower limit of integration.
      b: The upper limit of integration.

  Returns:
      The value of the definite integral.
  """
  return (b**4 - a**4) / 4

# Calculate the integral of x^3 from 0 to 10
result = integrate_x_cubed(0, 10)

# Print the result
print(result)
'''

This script defines a function `integrate_x_cubed` that takes the lower and upper limits of integration as arguments and returns the definite integral of x^3 using the power rule of integration. The script then calls this function with the limits 0 and 10 and prints the result.

Execute the script `python integral.py`, you should get the result: `2500.0`.

TERMINATE
--------------------------------------------------------------------------------
